Diode LED Dimmable LEDs
Engineered and Designed in the U.S.A.

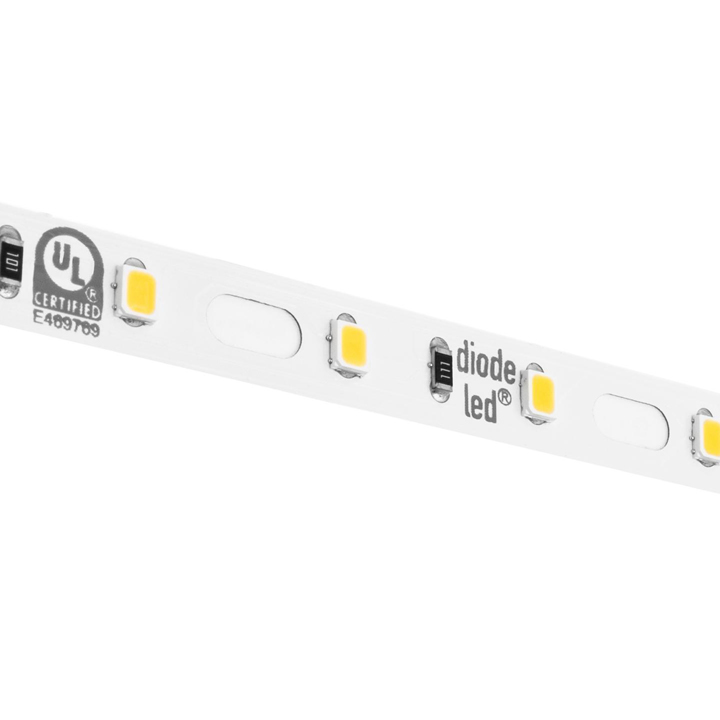

SQUIGGLY LED tape light excels at lighting complex projects like lettering and signage as well as modern architectural accents. SQUIGGLY is durable for tight bends and has an exceptionally high 95+ CRI. Available in both Indoor and Wet Location models.
SQUIGGLY STRIP
SPECIFICATIONS and PRICING
SQUIGGLY STRIP
POWER SUPPLIES and CONTROLS
LIMITED AVAILABILITY CONTACT US for STOCK CHECK
SQUIGGLY
ETL Field Cuttable RoHS 24V DC No 120V Indoor Installation Dimmable
ETL
CERTIFIED
FIELD
CUTTABLE
RoHS
COMPLIANT
12V DC DO NOT CONNECT TO
120V AC
Indoor
Use Only
Dinmmable

• Restaurants, retail stores, bars, lounges, and casinos
• Under cabinet lighting, shelves, cupboards, closets, and drawers
• Architectural models and doll houses
• Lighting art, accent pieces, and wine caves (no UV emissions)
• Coin-operated vending machines and arcade games
• Boat interiors
CLICK for LARGER VIEW

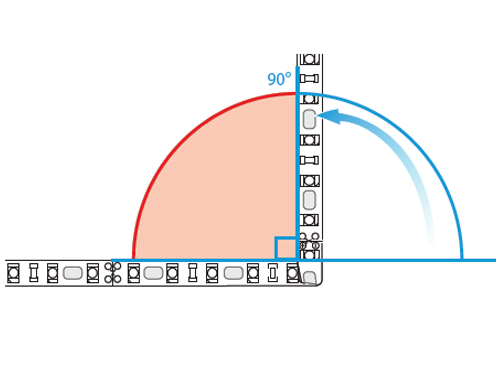

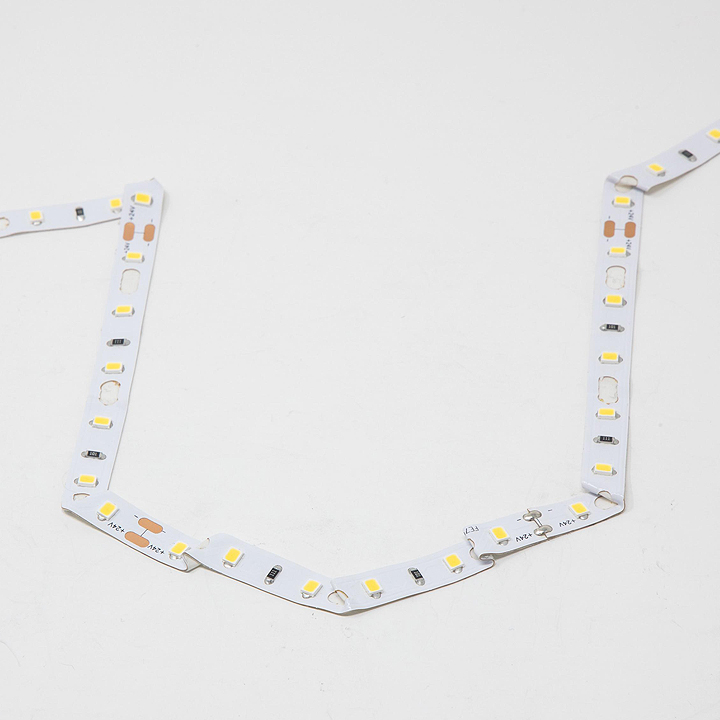

Bendable Squiggly
Click Button for PDF SQUIGGLY Installation Guide PDF Installation Guide
Click Button for SQUIGGLY LED PDF Specifications FLUID VIEW LED PDF Specifications
Click Button for Full 7 Year
Warranty Information
Diode LED Warranty
TECH SPECS

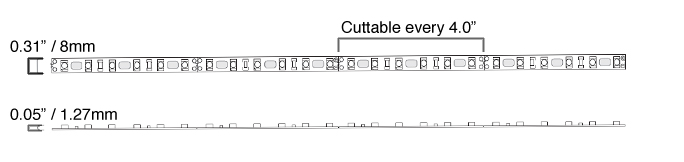

Sold in 10.0' Spools Width : 0.3 in. / Height: 0.1 in.
100% Dimmable Fixture Surface Temp.: 68° - 104° F
Color Temperature Range: 2700K - 3000K LED Type: 2835
Beam Angle: 120° LED Spacing: 0..545 in. between centers
Working Voltage: 12V DC Lifespan: 50,000+ hours
LEDs Per Foot : 33 Lumens Per Foot: 144 - 182
IP Rating: IP40 UV/IR Radiation: None
Power Consumption Per Foot:2.3W Lifespan: 50,000+ hours
Connectors: 6" Bare Wire Leads on One End;
Each 10 foot of Squiggly Strip Light must be Wired Directly to Power Supply.
CHOOSE FROM 9 COLOR TEMPERATURES
Color Temperatur Chart
INDOOR SQUIGGLY
ITEM LENGTH COLOR COLOR
TEMP.
CRI* LUMENS / FT POWER
CONSUMPTION / FT.
# OF
LEDS / FT.
PRICE
DI-12V-SQ1-27-010 10.0 ft. /2. 5m warm white 2000k 95+ 144 2.3W / 120mA 22 $90.00
DI-12V-SQ1-30-010 10.0 ft. /2. 5m warm white 2000k 95+ 158 2.3W / 120mA 22 $90.00
DI-12V-SQ1-50-010 10.0 ft. /2. 5m cool white 2400k 95+ 181 2.3W / 120mA 22 $90.00
WET LOCATION SQUIGGLY
ITEM LENGTH COLOR COLOR
TEMP.
CRI* LUMENS / FT POWER
CONSUMPTION / FT.
# OF
LEDS / FT.
PRICE
DI-12V-SQ1-27-W010 10.0 ft. /2. 5m warm white 2000k 95+ 149 2.3W / 120mA 22 $136.60
DI-12V-SQ1-30-W010 10.0 ft. /2. 5m warm white 2000k 95+ 163 2.3W / 120mA 22 $136.60
DI-12V-SQ1-50-W010 10.0 ft. /2. 5m cool white 2400k 95+ 182 2.3W / 120mA 22 $136.60
^ COLOR RENDERING INDEX
CUSTOM LENGTHS AVAILABLE FOR EASE OF INSTALLATION
Made in the USA Assembled in the USA
Custom Finished LED Tape Light
• Cut LED tape light to specified lengths
• Choose from a wide variety of single-color and color-changing options
• Lead wire is cut to specified length and soldered to the end of the tape light
Custom Cut CHROMAPATH™ Aluminum Channels
• Cut CHROMAPATH Aluminum Channels and Clear or Frosted Covers to specified lengths in increments of 1/8 in.
• Each channel includes:
        2 optional end-to-end connector plugs to connect to another CHROMAPATH Channel for runs longer than 4 feet.
        2 mounting clips with each SQUARE, 45, and DUO channel.
        SLIM channels don’t require mounting clips. SLIM Channel Mounting Tape is sold separately.
Fully Loaded CHROMAPATH Fixtures with LED Tape Light
• Create a customized, low-Profilee light fixture to specified length and color temperature by adding your choice of LED
  tape light to your preferred CHROMAPATH Aluminum Channel
• Cut CHROMAPATH Channels and Clear or Frosted Covers to specified lengths in increments of 1/8 in.
• Lead wire is cut to specified length and soldered to the end of the tape light within the fixture
• The fixture is completed with a CHROMAPATH Cover and End Caps
• SQUARE, 45 DEGREE, and DUO channel styles include 2 mounting clips. SLIM channels don’t require mounting clips.
  SLIM Channel Mounting Tape is sold separately.
CONTACT US FOR QUOTE: 888-844-3267 / MATT@ILLUMENATE.COM
BACK to TOP

CLICK IMAGE for COMPLETE SELECTION and DETAILS
POWER SUPPLIES and CONTROLS
Plug-In Adapters Hard-Wired
Non-Dimmable Drivers
Hard-Wired
Dimmable Drivers
12V and 24V
DRIVER / DIMMER
REIGN
In-Wall Controls
In-Line Controls
Plug-In Adapters Hard-Wired Non-Dimmable Drivers Hard-Wired Dimmable Drivers Hard-Wired Dimmable Drivers In-Wall Controls In-Line Controls
Adapters Plug in to a Standard Electrical Socket. Any of Our Dimmable Light Fixtures Powered by a Plug-In Adapter, Can Be Dimmed Using the REIGN 12V In-Wall Switch or the In-Line Dimmer Switch.
Hard-Wired Non-Dimmable Drivers Should be Hard-Wired to Household AC Power by a Licensed Electrician. Any of Our Dimmable Light Fixtures Powered by a Hard-Wired Driver, Can Be Dimmed Using the REIGN 12V In-Wall Switch or the In-Line Dimmer Switch.
Hard-Wired Non-Dimmable Drivers Should be Hard-Wired to Household AC Power by a Licensed Electrician. Any of Our Dimmable Light Fixtures Can be Powered by Our Hard-Wired Dimmable Drivers and a 120V Magnetic Low Voltage Dimmer Switch
SWITCHEX combines an LED dimmer switch and LED power supply into a single integrated unit that fits in a single gang box.
REIGN 12V / 24V In-Wall Switches Allow for Full 0-100% Dimming.
Our 12V / 24V In-line Controls All Feature DC Plugs That Make Them Compatible with Any of Our DC Accessories. Any of Our Dimmable Light Fixtures Powered by Plug-In Adapters or Standard Hard-Wired Drivers Can Be Dimmed Using the In-Line Dimmer Switch
