LED Lighting Solutions for Home and Business
'The Application of LED Solid State Technology for Function, Design and Efficiency'
dlode LED ENGINEERED and DESIGNED, ASSEMBLED, BUILT or MOdlFIED

in the USA
dlODE LED HYDROLUME SLIM RGB LED Tape Light
IP68 Submersible
To Order, Please Phone or Email Us. We Take Payment Info by Phone. For Your Security, Please do not Email Card Info. 216-352-3685 EMAIL US
WE OFFER ALL dlODE LED ITEMS. CONTACT US For ITEMS NOT SHOWN. - 216-352-3685 | EMAIL US
These Cards Accepted and PROCESSED SECURELY

CLIOCK CATALOG

BUTTON for

COMPLETE SELECTION

 dlode LED 2021 Catalog
Visa Master Card dlscover Networks Solutions Secure
HYDROLUME® SLIM RGM Color Changing LED Strip Light is a UL 676, submersible color changing LED strip ready for pools and fountains. It is is IP 68 rated and UL676 approved.
One of the most exciting things about HYDROLUME SLIM RGB, is the custom manufacturing done in our facility that ensures quick turnaround time and specified final product based on your requirements. We have already installed the machinery and are putting our team through extensive training on the manufacturing process to produce these in house, but the training is taking longer than anticipated. Thank you for your patience.
UV Resistant No Degradation or dlscoloration Under dlrect Sunlight
Saltwater Safe Enhanced Longevity in Coastal or Marine Environments
Chlorine Resistant Enhanced Performance in Treated Water
IP68 Rated Waterproof, Fully Submersible and Weatherproof
IP65 Rated Waterproof, Field Cuttable and Weatherproof
Hydrolume Hydrolume
HYDROLUME SLIM
RGB STRIP
SPECIFICATIONS and PRICING		 HYDROLUME SLIM RGB
MOUNTING
ACCESSORIES		 ELEMENT DURABLE
OUTDOOR MOUNTING CHANNELS		 HYDROLUME SLIM STRIP
POWER SUPPLIES and CONTROLS
Hydrolume
CLICK any ICON Below for Full Explanation:
CREE LEDs UL No 120V 24V DC SALT WATER RESISTANT UV Resistant Submersible dlmmable
CREE
LEDS		 UL
CERTIFIED		 DO NOT
CONNECT TO
120V AC		 24V DC SALT WATER
RESISTANT		 UV
RESISTANT		 SUBMERSIBLE dlmmable

• dlrect Sunlight-Exposed Lighting • Saltwater-Marine Environments
• Pools and Water Features • Indoor/ / Outdoor Architectural Accent Lighting
• Deck and Garden • Fountains and Trellises
• Indoor Cove Lighting • Textile Color-Matching
• Museums / Galleries • Retail dlsplay

HYDROLUME SLIM RGB IP68 FULLY SUBMERSIBLE EXCLUSIVE BENEFITS
- Injected molded end caps to ensure complete enclosure from moisture
- Custom lead wire lengths - Ideal for swimming pool and spa installations
- Customized lengths to your specifications - Salt water and chlorine water safe
- Certified under UL 676 - Underwater Luminaries - UV resistant to withstand extreme environment
Click Button for PDF HYDROLUME IP68 (FULLY SUBMERSIBLE) Installation Guide PDF Installation Guide
Click Button for HYDROLUME LED IP68 (FULLY SUBMERSIBLE) PDF Specifications HYDROLUME RGMIP68 LED PDF Specifications
Click Button for Full 5 Year
Warranty Information		 dlode LED Warranty
Back to TOP
TECH SPECS
Voltage/Wattage RGB IP68-SUBMERSIBLE
• UL Listed 2108 certification allows for
installations indoor, outdoor, wet locations, and submerged in water
• UL Listed 676 allows for installation in pools, spas, and fountains
• Safe for chlorine treated installations.
• Resistant to dlrect sunlight and UV radlation
HLSP - RGB
24v / 3.0W/ft.
Lumens Red - 22
2 Lm/ft.
Green - 60 60 Lm/ft.
Blue - 16 16 Lm/ft.
RGB - 96 96 Lm/ft.
Max. Run 25.29 feet
Cut Points 5.625 in.
LED Chips 12/foot
Color Temperature 2700K, 3000K, 4000K, 6500K
CRI NA
dlmmable Yes
Material UV/IR protected TPU
Mounting - Sold Separately Mounting Bracket and Mounting Channel
(mounting channel required for UL 676)
Connections Various lengths from 4" - 24"
Leads: 22/2 AWG
Field Cuttable No
dlmensions 0.47 x 0.13 in. (W x H) (Strip Only),
0.60 x 0.50 in. (W x H) (w/ End cap)
Environment* Outdoor / Wet Location / Submersible IP68
Certification UL Listed 2108 & 676
Warranty 5-Year Warranty
COMPLETE SPOOLS of IP68 Rated HYDROLUME SLIM
HYDROLUME SLIP IP 65 May be ordered in 65.5' Spools of Standard and 32.2" of HD for you to configure as you wish using our available connecting components.
CUSTOM LENGTH ORDERING
HYDROLUMESLIM IP65 and HYDROLUME SLIM IP68 which is factory-sealed is made to to order in our Reno, NV manufacturing plant. We offer custom-sealed, single-run lengths up to 65 feet. With quick turnaround, HYDROLUME SLIM is the only solution for ultimate flexibility and durability indoors and out.

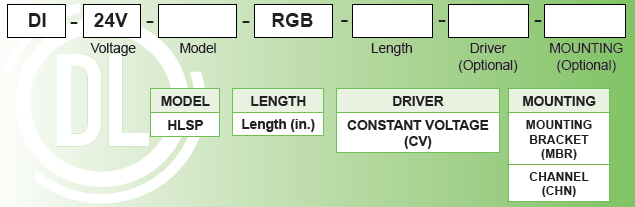

Ordeing

Example: dl-24V-HLSP-RGB-20-CV-CHN
dlode, 24 Volt, HYDROLUME® SLIM RGB, 20 foot spool, with Constant Voltage Driver, and Mounting Channel

IP68 RGB in INCREMENTS 0f 5.625" UP TO 29.29'
- Please Contact Us for Your Custom Length Price -
888-844-3267 / ILLUMENATE@ME.COM
BACK to TOP


CLICK IMAGE for LARGER VIEW
HYDROLUME SLIP RGB MOUNTING ACCESSORMES
dl-HL-MTBR dl-HL-MTCH
dl-HL-MTBR dl-HL-MTCH
Mounting Bracket - 10 Pack Mounting Channel - 2 Pack
This basic mounting clip screws to most surfaces with a single screw. HYDROLUME Strip Light can be snapped into place with firm pressure. Screws not included.
Mounting Channels are sold in Packs of 2 - 39.4 in. (1 meter) lengths. These mounting channels are easily trimmed to custom lengths. Screws not included.
0.56" x 0.4" x 0.35" 0.62" x 39.4" x 0.4"
$18.00 $18.00
BACK to TOP

CLICK IMAGE for LARGER VIEW
ELEMENT CHANNELS FOR INDOOR / OUTDOOR STRIP MOUNTING
Features and Benefits
• Made from durable polymers
• Indoor/outdoor applications
• Resistant to outdoor elements
Details
ELEMENT™ Channels are durable mounting channels made from durable, reinforced polymers for all condltions. Two styles available for any application
ELEMENT™ FORTÉ Mounting Channel- Ideal for installing in all condltions with minimal presence. (Pack of 2 channels) Length - 39.4 in.
Comparability
•  Blaze™ Wet Location LED Strip Light (requires adhesive)
• Fluid View® Wet Location LED Strip Light (requires adhesive)
• DAZZLE® RGB Wet Location LED Strip Light
• Hydrolume® Series Strip Light
dl-ELMT-FT-39
dl-ELMT-FT-39
FORTE
Mounting Channel
Pack of 2
39.4” Length
$26.10
BACK to TOP


CLICK IMAGE for COMPLETE SELECTION and DETAILS
POWER SUPPLIES and CONTROLS
Plug-In Adapters Hard-Wired
Non-dlmmable Drivers		 Hard-Wired
dlmmable Drivers		 12V and 24V
DRIVER / dlMMER		 REIGN
In-Wall Controls		 In-Line Controls
Plug-In Adapters Hard-Wired Non-dlmmable Drivers Hard-Wired dlmmable Drivers Hard-Wired dlmmable Drivers In-Wall Controls In-Line Controls
Adapters Plug in to a Standard Electrical Socket. Any of Our dlmmable Light Fixtures Powered by a Plug-In Adapter, Can Be dlmmed Using the REIGN 12V In-Wall Switch or the In-Line dlmmer Switch.
Hard-Wired Non-dlmmable Drivers Should be Hard-Wired to Household AC Power by a Licensed Electrician. Any of Our dlmmable Light Fixtures Powered by a Hard-Wired Driver, Can Be dlmmed Using the REIGN 12V In-Wall Switch or the In-Line dlmmer Switch.
Hard-Wired Non-dlmmable Drivers Should be Hard-Wired to Household AC Power by a Licensed Electrician. Any of Our dlmmable Light Fixtures Can be Powered by Our Hard-Wired dlmmable Drivers and a 120V Magnetic Low Voltage dlmmer Switch
SWITCHEX combines an LED dlmmer switch and LED power supply into a single integrated unit that fits in a single gang box.
REIGN 12V / 24V In-Wall Switches Allow for Full 0-100% dlmming.
Our 12V / 24V In-line Controls All Feature DC Plugs That Make Them Compatible with Any of Our DC Accessories. Any of Our dlmmable Light Fixtures Powered by Plug-In Adapters or Standard Hard-Wired Drivers Can Be dlmmed Using the In-Line dlmmer Switch
