Diode LEDThe FLUID VIEW Strip Light is a light fixture that has it all. It’s cuttable to a custom length and dimmable. It’s extremely low-profile, at a tenth of an inch high and third of an inch wide, so it can be used virtually anywhere. It’s a 12V fixture that draws less than 1.5 Watts per foot, so it’s very economical. To top it off, it comes in a rainbow of colors: warm white, cool white, amber, pink, red, green, blue, and purple. SPECTRUM RGB is thr Color Changing offering.

Each spool comes with lead wires attached that allow for easy connection to a power source, whether a 12V Plug-In Adapter or Hard-Wired Driver, so it’s plug-and-play. The FLUID VIEW Strip is cuttable every 2 inches and is flexible, giving maximum adaptability for custom lighting projects. It comes with a 3M adhesive backing which allows for easy mounting on a dry surface.

The FLUID VIEW Strip is applicable in all lighting situations, but especially in interior coves and nooks; display cases and shop windows, kitchen cabinets, closets, and pantries, soffits and hallways; project lighting such as presentations, light boxes, light tables, and exhibits; and any close application task lighting.

The FLUID VIEW Strip can be powered by either a Plug-In Adapter (p. 24) or Hard-Wired Driver (p. 25). And the FLUID VIEW Strip can be dimmed by our in-wall REIGN 12V Dimmer Switches) or by the Diode LED Hard-Wired Dimmable Drivers.

FLUID VIEW STRIP
SPECIFICATIONS
and PRICING		 FLUID VIEW
VIDEO		 FLUID VIEW STRIP
LIGHT CONNECTORS		 KLUS STRIP LIGHT
CHANNELS
and DIFFUSERS		 FLUID VIEW STRIP
POWER SUPPLIES and CONTROLS
SPECTRUM RGB COLOR CHANGING STRIP PRICING SPECTRUM RGB INTALLATION VIDEO

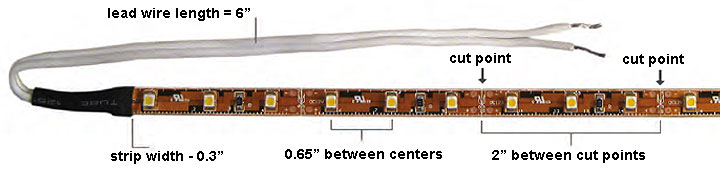

fluid View
• Restaurants, retail stores, bars, lounges, and casinos CLICK IMAGE for LARGER VIEWFluid View
• Under cabinet lighting, shelves, cupboards, closets, and drawers
• Architectural models and doll houses
• Lighting art, accent pieces, and wine caves (no UV emissions)
• Coin-operated vending machines and arcade games
• Boat interiors
Click Button for Voltage Drop & Wire Gauge Distance Chart Voltage Drop & Wire Gauge Distance Chart
Click Button for PDF Wiring Diagram PDF Wiring Diagram
Click Button for FLUID VIEW LED PDF Specifications FLUID VIEW LED PDF Specifications
Click Button for DAZZLE RGB LED PDF Specifications DAZZLE RGB LED PDF Specifications
Click Button for DAZZLE RGB WATERPROOF LED PDF Specifications DAZZLE RGB WATERPROOF LED PDF Specifications

BACK to TOP

TECH SPECS
Sold in 16.4" Spools (100' Spools Where Noted) Width : 0.3 in. / Height: 0.1 in.
100% Dimmable Fixture Surface Temp.: 68° - 104° F
Color Temperature Tunable Range: 2700K - 5000K LED Type: 3528 SMO LED
Beam Angle: 120° LED Spacing: 0.65 in. between centers
Working Voltage: 12V DC Lifespan: 50,000+ hours
LEDs Per Foot : 18 Lumens Per Foot: 70 - 78
IP Rating: IP40 UV/IR Radiation: None
Power Consumption Per Foot:1.44W Lifespan: 50,000+ hours
Connectors: 16.4 ft. spools come with 3 foot bare lead wires on one end and a 12 inch white, female DC plug on the other end; 100 ft. spools come with 3 foot bare lead wires on both ends
Each 16.4 foot of Fluid View Strip Light must be Wired Directly to Power Supply.

ITEM LENGTH COLOR COLOR
TEMP.		 LUMENS POWER
CONSUMPTION / FT.		 # OF
LEDS / FT.		 PRICE
DI-0001 16.4 ft. / 5m warm white 2700k 70 1.44W / 120mA 18 $160.00
DI-0010 100 ft. / 30.4m warm white 2700k 70 1.44W / 120mA 18 $900.00
DI-0002 16.4 ft. / 5m cool white 5000k 78 1.44W / 120mA 18 $160.00
DI-0011 100 ft. / 30.4m cool white 5000k 78 1.44W / 120mA 18 $900.00
DI-0003 16.4 ft. / 5m red 625nm 24 1.44W / 120mA 18 $160.00
DI-0004 16.4 ft. / 5m green 525nm 68 1.44W / 120mA 18 $160.00
DI-0005 16.4 ft. / 5m blue 465nm 12 1.44W / 120mA 18 $160.00
DI-0006 16.4 ft. / 5m amber 590nm 29 1.44W / 120mA 18 $160.00
DI-0007 16.4 ft. / 5m purple 435nm 0.9 1.44W / 120mA 18 $180.00
DI-0008 16.4 ft. / 5m pink 605nm 36 1.44W / 120mA 18 $180.00
DI-0070 16.4 ft. / 5m SPECTRUM
RGB

R = 620nm
G = 520nm
B = 470nm

R = 18
G = 29
B = 9 		1.44W / 120mA 18 $260.00
DI-0071 9.5 ft.
Wet Location 		SPECTRUM
RGB- WET

R = 620nm
G = 520nm
B = 470nm

R = 18
G = 29
B = 9 		2.2W / 180mA 9 $260.00
CLICK IMAGE for SPECTRUM RGB ACCESSORIES DI-0761
CLICK IMAGE for Complete
SPECTRUM RGB KIT

Save by by Purchasing
DI-0181 (5 Foot) KIT
or
DI-0180 (10 Foot) KIT		 DI-0181, DI-0180
CLICK IMAGE for APOLLO
RGB DMX and JAMMER
Controllers 		Apollo Color Controllers
CLICK IMAGE for COMPLETE FLUID VIEW KIT

Save by Purchasing
DI-0187 (Warm White) KIT
or
DI-0188 (Cool White) KIT		 DI-0187, DI-0188
BACK to TOP

FLUID VIEW VIDEO
BACK to TOPBACK to TOP

SPECTRUM RGB INTALLATION VIDEO
BACK to TOP

CLICK IMAGE for LARGER VIEW
FLUID VIEW STRIP CONNECTORS
DI-0001-T
DI-0002-T		 DI-0001-L
DI-0002-L		 DI-073X DI-0700 DI-0701 DI-07XX
DI-0001-T, DI-0002-T DI-0001-L, DI-0002-L DI-0732 DI-0700 DI-0701 DI-0722
"T" Section
Cool White
Warm White		 "L" Section
Cool White
Warm White		 FLUID VIEW Splice
Connector		 FLUID VIEW DC Plug
Connector		 FLUID VIEW Strip to Strip
Connector		 FLUID VIEW Bending
Extension
Creates a Corner when used with Strip-to-Strip Connector (DI-0701). DI-0002-T is 39 Lumens, DI-0001-T is 35 Lumens. Both consume 1W.
Creates a Junction when used with Strip-to-Strip Connector (DI-0701). DI-0002-T is 26 Lumens, DI-0001-T is 23 Lumens. Both consume 1W.
Connects non-waterproof single color FLUID VIEW and BLAZE Strip to a Hard-Wired Driver. Available in 5 Lengths.
Connects non-waterproof single color FLUID VIEW and BLAZE Strip to a Plug-In Driver.
Connects sections of non-waterproof single color FLUID VIEW and BLAZE.
Connects sections of non-waterproof single color FLUID VIEW with a flexible joint with a bending range of 0° - 180°.
4" x 2" x 0.3" 2" x 2" x 0.3" .06"" 5.4" x 0.4" 0.7" x 0.4" x 0.1" 0.4"
$7.00 / $7.00 $5.00 / / $5.00
DI-0732 3.4"
$6.00
DI-0736 24"
$8.00
DI-0737 48"
$10.00
DI-0738 72"
$12.00
DI-0739 96"
$14.00
$6.00 $6.00
DI-0722 3"
$6.00
DI-0791 24"
$8.00
DI-0792 48"
$10.00
DI-0793 72"
$12.00
DI-0794 96"
$14.00
BACK to TOP

CLICK IMAGE for LARGER VIEW
KLUS STRIP LIGHT CHANNELS
DI-1052 (NOOK)
DI-1051 (ORB)
DI-1050 (QUAD)		 DI-1051 (ORB)
DI-1052 (NOOK)
DI-1050 (QUAD) 		DI-1051 (ORB)
DI-1052 (NOOK)
DI-1050 (QUAD) 		DI-1060
DI-1061
KLUS Channels Shown Left to Right Diffusers Shown Left to Right
DI-1050, DI-1051, DI-1052 DI-1050, DI-1051, DI-1052 DI-1050, DI-1051, DI-1052 DI-1060 DI-1061
KLUS Strip Light Channels protect and provide light diffusion for FLUID VIEW, BLAZE, SPECTRUM RGB , DAZZLE RGB and K-RANGE Strip Lights. The sturdy but lightweight matte anodized aluminum KLUS Channels are available in three versions: the QUAD (DI-1050) is a square-shaped channel that mounts flush on a surface; the ORB (DI-1051) has a rounded shape that lets you adjust the angle of the channel; and the NOOK (DI-1052) has a right-angled shape that allows for mounting in a corner so that light shines at a 45° angle. KLUS Strip Light Channels can be installed on a flat horizontal or vertical surface with KLUS Mounting Clips, or sealed and hung from a ceiling using KLUS Extended Hanger End Caps. Choose a Frosted KLUS Channel Cover to diffuse and soften the illumination from the strip light, or a Clear KLUS Channel Cover to just shield the strip light from dust. KLUS Channels are cuttable and can be mounted end to end to any total length.
Frosted KLUS Strip Light Channel Covers - DI-1060 - diffuse and soften the illumination from the strip light, while the Clear KLUS Channel Covers - DI-1061 - shields the strip light from dust, but doesn't’t diffuse the light. KLUS Channel Covers are easy to install: just slide them into the existing slot in the KLUS Strip Light Channel.
ITEM DESCRIPTION DIMENSIONS PRICE
DI-1050 QUAD Channel 39.4" x 0.63" x 0.5" $34.00
DI-1051 ORB Channel 39.4" x 0.7" x 0.6" $40.00
DI-1052 NOOK Channel 39.4" x 0.7" x 0.7" $40.00
DI-1060 FROSTED Diffuser 39.4" x 0.4" $20.00
DI-1061 CLEAR Diffuser 39.4" x 0.4" $20.00
Click Button for PDF Wiring Diagram PDF Wiring Diagram
Click Button for KLUS Channel LED PDF Specifications KLUS Channel

KLUS STRIP LIGHT HARDWARE
KLUS End Caps provide a seal for KLUS Strip Light Channels. KLUS Extended Hanger End Caps seal and provide a hanger mechanism for hanging the KLUS channel from a ceiling: each Extended Hanger End Cap features a hole through which hanger wire can be strung. KLUS Mounting Clips help securely mount KLUS Strip Light Channels on flat surfaces. A pair of End Caps is necessary for each installation. All KLUS Strip Light Channel End Caps and Mounting Clips are sold per piece.
DI-1080 DI-1081 DI-1082 DI-1083 DI-1070
DL-1080 DL-1081 DL-1082 DI-1083 DI-1084
QUAD Channel
End Cap		 ORB Channel
End Cap		 NOOK Channel
End Cap		 QUAD / NOOK
Extended Hanger
End Cap		 ORB
Extended Hanger
End Cap
0.6" x 0.5" x 0.4" 0.6" x 0.7" x 0.4" 0.7" x 0.7" x 0.4" 0.6" x 0.5" x 0.6" 0.6" x 0.7" x 0.8"
$6.00 $6.00 $6.00 $15.00 $15.00
DL-1070
DI-1070
KLUS Mounting Clip
ORB / QUAD
0.8" x 0.8" x 0.3"
$6.00
DL-1071
DI-1070
KLUS 45° Mounting Clip
NOOK
0.8" x 0.8" x 0.3"
$6.00


CLICK IMAGE for COMPLETE SELECTION and DETAILS
POWER SUPPLIES and CONTROLS
Plug-In Adapters Hard-Wired
Non-Dimmable Drivers		 Hard-Wired
Dimmable Drivers		 REIGN
In-Wall Controls		 In-Line Controls
Plug-In Adapters Hard-Wired Non-Dimmable Drivers Hard-Wired Dimmable Drivers In-Wall Controls In-Line Controls
Adapters Plug in to a Standard Electrical Socket. Any of Our Dimmable Light Fixtures Powered by a Plug-In Adapter, Can Be Dimmed Using the REIGN 12V In-Wall Switch or the In-Line Dimmer Switch.
Hard-Wired Non-Dimmable Drivers Should be Hard-Wired to Household AC Power by a Licensed Electrician. Any of Our Dimmable Light Fixtures Powered by a Hard-Wired Driver, Can Be Dimmed Using the REIGN 12V In-Wall Switch or the In-Line Dimmer Switch.
Hard-Wired Non-Dimmable Drivers Should be Hard-Wired to Household AC Power by a Licensed Electrician. Any of Our Dimmable Light Fixtures Can be Powered by Our Hard-Wired Dimmable Drivers and a 120V Magnetic Low Voltage Dimmer Switch
REIGN 12V / 24V In-Wall Switches Allow for Full 0-100% Dimming.
Our 12V / 24V In-line Controls All Feature DC Plugs That Make Them Compatible with Any of OUr DC Accessories. Any of Our Dimmable Light Fixtures Powered by Plug-In Adapters or Standard Hard-Wired Drivers Can Be Dimmed Using the In-Line Dimmer Switch
